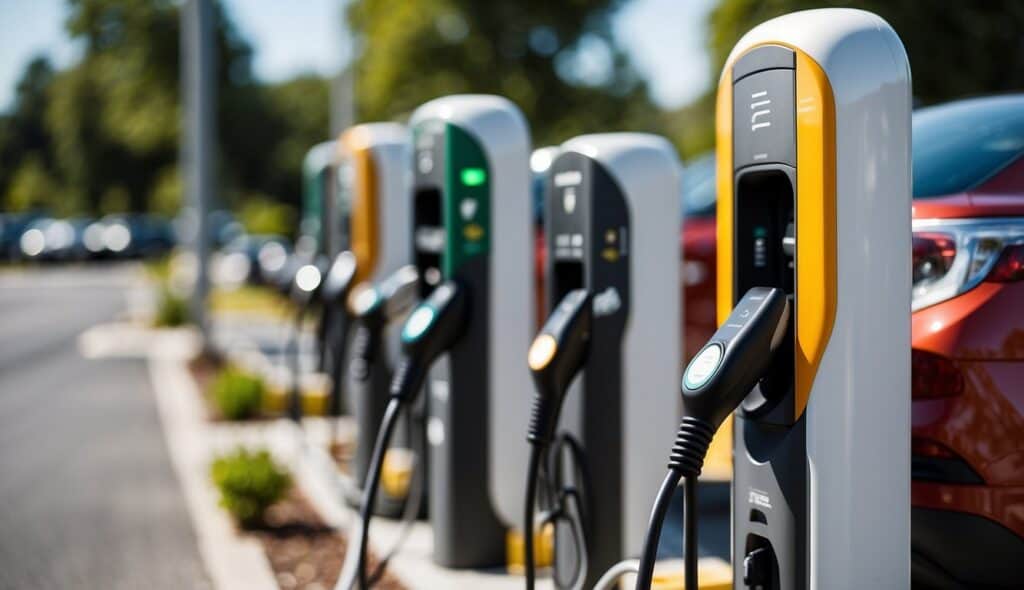

Electric car owners often wonder if all charging stations are universal. This is a key concern as it can affect the convenience of owning an electric vehicle.
The answer is that while Level 1 and Level 2 charging stations tend to be universal, there are still some differences when it comes to faster DC fast charging.
Most electric cars use standard plugs for Level 1 and Level 2 charging, making them compatible with most charging stations in North America. However, fast charging, known as Level 3 charging, can vary between brands.
For example, Tesla uses its own proprietary system, meaning that not all fast chargers are interchangeable between cars.
Understanding the types of EV charging stations and their compatibility can help electric car owners plan their trips and home charging solutions better.
As more charging stations are installed and technology advances, the compatibility issues are expected to lessen, but it’s important to be aware of these differences today.
Learn more about EV charging options and technology advancements to ensure a seamless charging experience for your electric vehicle.
Understanding Electric Vehicle Charging
Electric vehicle charging involves different types of chargers, standards, and connectors that ensure compatibility and efficiency.
Key aspects include the charging levels, standards used, and the various types of connectors and ports available.
Types of EV Charging
EV charging is categorized into three levels based on power and charging speed.
Level 1 charging uses a standard 120-volt outlet and is the slowest, providing about 2 to 5 miles of range per hour.
Level 2 charging requires a 240-volt outlet and offers faster charging, delivering around 10 to 60 miles of range per hour.
Level 3 charging, also known as DC fast charging, uses direct current and can provide up to 80% charge in 20 to 30 minutes, making it ideal for long trips.
Common Charging Standards
Several standards govern EV charging to ensure compatibility.
The J1772 standard is common for Level 1 and Level 2 charging and is widely used across many electric vehicles.
For DC fast charging, standards like CHAdeMO and CCS (Combined Charging System) are prevalent.
Japanese manufacturers often use CHAdeMO, while European and American automakers favor CCS.
These standards ensure that different EV models can access a variety of chargers.
Charging Connectors and Ports
The connectors and ports play a crucial role in EV charging.
J1772 connectors are typical for AC charging at levels 1 and 2, ensuring widespread accessibility.
For DC fast charging, CHAdeMO and CCS connectors are used to deliver higher power.
The charging port on the vehicle must match the connector of the electric vehicle supply equipment (EVSE).
Adapters are available to bridge any incompatibility issues, making it easier for users to charge their EVs at different stations.
Check out Where Can I Charge My Electric Car for Free?
Public Charging Infrastructure
Public charging infrastructure is crucial for electric vehicle (EV) adoption. This section explores public charging stations’ availability, speeds, and payment options.
Public Charging Stations Availability
Public charging stations are found throughout cities and along major highways.
Companies like Tesla, Electrify America, Volta, EVgo, and ChargePoint have extensive networks.
Tesla offers more than 2,200 Supercharger stations nationwide, primarily located along major highways.
For non-Tesla users, networks like ChargePoint offer broad coverage across urban areas and shopping centers.
Government and private sector investments have accelerated the development of EV infrastructure.
For example, the Bipartisan Infrastructure Law provides $7.5 billion to enhance the nation’s EV charging network.
This effort aims to install 500,000 public chargers by 2030, ensuring widespread access.
Charging Speeds at Public Stations
Charging speeds at public stations vary. Chargers are typically divided into three types:
- Level 1 Chargers: Slowest, providing 2-5 miles of range per hour.
- Level 2 Chargers: Faster, offering 10-20 miles of range per hour.
- DC Fast Chargers: Fastest, providing up to 200 miles of range in about 30 minutes.
Stations like Tesla Superchargers and Electrify America use DC Fast Chargers. These are ideal for long-distance travel.
Level 2 chargers are more common in public places like parking garages, hotels, and shopping centers, making them suitable for daily charging needs during errands or work.
Payment Methods and Accessibility
Public charging stations offer various payment methods.
Users can generally pay with credit cards, RFID cards, or through mobile apps.
Networks like EVgo and ChargePoint support these methods for easy access to charging services.
Accessibility enhancements include apps like PlugShare and Google Maps, which help users locate nearby chargers.
Some stations, like those from Volta, offer free charging at specific locations, usually sponsored by advertisers.
Ensuring these payment and accessibility options are user-friendly encourages more people to transition to electric vehicles.
Check out Does an Electric Car Lose Charge When Parked?
Home Charging Solutions
Charging an electric vehicle (EV) at home provides convenience and can be more cost-effective compared to public charging stations. Here, we’ll explore how to set up home charging, and the differences between Level 1 and Level 2 charging options.
Setting Up Home Charging
Setting up home charging involves selecting the right type of charger and installation process.
Most EVs come with a basic charging cord that can plug into a standard 120v household outlet, known as Level 1 charging. This setup is simple but charges slowly.
For faster charging, many opt for a Level 2 charger, which requires a 240v outlet similar to those used by electric dryers or ovens.
A professional electrician should install this to ensure safety and compliance with local regulations. Homeowners may also need to upgrade their electrical panel to accommodate the extra load.
Another consideration is where to place the charging station.
It should be located where the EV can be easily parked close by, such as a garage or driveway.
This ensures that the charging cord can reach the vehicle without posing a tripping hazard.
Some chargers come with smart features like Wi-Fi connectivity to monitor charging status remotely.
Level 1 vs. Level 2 Charging at Home
Level 1 Charging: Uses a 120v outlet and is the simplest form of at-home EV charging. It typically provides about 4 to 5 miles of range per hour of charging. This is suitable for people who drive short distances daily and can leave the car charging overnight.
Level 2 Charging: Utilizes a 240v outlet and significantly reduces charging time, offering 10 to 60 miles of range per hour.
This is ideal for those with longer commutes or needing to charge more quickly.
Level 2 chargers often come with additional features such as adjustable power levels and advanced safety mechanisms, making them a popular choice for residential charging.
Check out How to Charge an Electric Car at Home Without a Garage?
Electric Vehicle Charging Across North America
Electric vehicle charging in North America consists of various standards and differences in availability among regions like the United States and Canada. These differences can impact which vehicles can charge at specific stations.
Charging Standards by Region
In North America, the predominant charging standards include the J1772 for Level 2 chargers and the CCS and CHAdeMO for DC fast chargers.
The J1772 connector is widely used for Level 2 charging, providing adequate charging speeds suitable for home and public use.
DC fast chargers cater to quicker charging needs.
Many American and European automakers favor the CCS standard, which offers faster charging times. Meanwhile, CHAdeMO is more common with Japanese vehicles.
Tesla vehicles utilize the Tesla North American Charging Standard (NACS), but they can also use other charging stations with an adapter.
Government initiatives in both the United States and Canada are expanding charging infrastructures to cover more regions, ensuring broader access to reliable charging options.
Electric Vehicle Compatibility and Considerations
Electric vehicle (EV) owners face several charging compatibility issues. Different manufacturers use various connectors, and adapters can sometimes bridge system gaps. Additionally, each vehicle has its own charging capacity, affecting how quickly it can charge at different stations.
Manufacturer-Specific Connectors
Electric cars often come with manufacturer-specific connectors.
Tesla uses its proprietary system, which is different from the Nissan Leaf and other non-Tesla vehicles. General Motors and Mercedes-Benz also use distinct connectors.
This fragmentation makes it essential for EV owners to understand their vehicle’s requirements and limitations regarding charging infrastructure.
Level 1 and Level 2 chargers are more standardized and commonly used across multiple brands.
However, DC fast chargers or Level 3 charging experience considerable variation. This variation can make it challenging for EV owners to find suitable public charging stations, especially for long trips.
Adapters and Cross-Compatibility
Adapters play a crucial role in ensuring EV compatibility with different charging networks.
Tesla offers adapters to allow their vehicles to charge at non-Tesla stations.
Similarly, many general electric vehicles can use adapters to access Tesla’s Supercharger network, though this often requires specific hardware and might involve additional costs.
Adapters also help plug-in hybrids and non-standard EVs to use a wider range of chargers.
Using the correct adapter can mean the difference between a smooth trip and being stranded.
EV owners need to carry the appropriate adapters, particularly when traveling outside their usual routes.
Variations in Vehicle Charging Capacity
Electric vehicles have varied charging capacities, impacting how quickly they can replenish their EV batteries.
For example, the Nissan Leaf might charge slower at a Level 3 station compared to a Tesla due to differences in battery and onboard charger capacities. This affects trip planning and charging station selection.
Owners of plug-in hybrids and other lower-capacity EVs should be mindful of these differences.
Knowing the vehicle’s capacity helps estimate charging times and find compatible stations that offer the needed power levels.
Mercedes-Benz and other high-end automakers often provide vehicles with higher charging capacities, reducing station downtime.
Check out Electric Car Battery Life in Hot Climates
The Future of Electric Vehicle Charging
Electric vehicle charging is evolving rapidly.
The federal government is investing significantly to expand the charging infrastructure across the United States.
These investments aim to support the growing number of electric vehicles on the road and improve driver convenience.
Innovation is a key factor shaping the future of EV charging.
Manufacturers are developing faster chargers, which can significantly reduce charging times.
For example, companies like Tesla are continually upgrading their supercharger networks to support higher power outputs.
Public charging stations are becoming more widespread.
As of May 2024, there are over 61,000 public charging stations available in the U.S.
This number is expected to grow as more automakers, including BMW and GM, commit to building additional chargers.
Efforts are also being made to standardize charging plugs and stations.
Tesla’s charging stations will soon be universal, allowing all electric vehicle owners to use them.
This shift will enhance accessibility and convenience for all EV drivers.
Sustainability remains a priority.
Many new charging stations are designed to be eco-friendly, using renewable energy sources like solar and wind to power the chargers.
This not only supports the use of electric vehicles but also aligns with broader environmental goals.
Check out Can You Use Portable Solar Panels to Charge an Electric Car?
Charging Network Operators and Partnerships
Charging network operators play a crucial role in the availability and compatibility of electric vehicle (EV) charging stations.
Several key players dominate the market, each providing unique solutions.
ChargePoint is one of the largest operators, offering a vast network of chargers.
Their stations are often compatible with various EV models, thanks to their partnerships with car manufacturers.
Electrify America focuses on high-speed charging infrastructure.
They offer numerous DC Fast Charging stations across major highways, enhancing long-distance travel for EV owners.
Their network is rapidly expanding through collaborations with automakers like Volkswagen.
EVgo also specializes in fast charging solutions.
Their stations are found in urban areas and along highways.
EVgo has established partnerships with companies like General Motors to provide seamless access for customers.
Volta stands out by integrating their charging stations with advertising screens, making them popular in retail locations.
Their partnership with shopping centers ensures high visibility and convenience for EV owners.
Tesla’s Supercharger Stations are known for their efficiency and exclusive compatibility with Tesla vehicles.
Agreement with other network operators could potentially broaden the accessibility of Superchargers to non-Tesla EVs in the future.
Table:
| Operator | Features | Partnerships |
|---|---|---|
| ChargePoint | Wide network, versatile | Car manufacturers |
| Electrify America | DC Fast Charging | Volkswagen |
| EVgo | Urban and highway locations | General Motors |
| Volta | ad-integrated, retail focus | Shopping centers |
| Tesla | Fast, efficient | Possible future agreements |
Conclusion
Electric car charging stations are not completely universal. Compatibility varies based on the type of charging and the car manufacturer.
Level 1 and Level 2 Charging:
Most electric cars use the same standard plugs for these slower charging levels, making basic charging more straightforward for users.
DC Fast Charging:
Different standards complicate fast charging. For example, Tesla uses its own system, while other makers follow different protocols.
Charging Connectors:
The J1772 connector is common in North America for Levels 1 and 2. Depending on the car, DC fast chargers use CCS, CHAdeMO, or Tesla connectors.
Key points to remember:
- Standard plugs ease Level 1 and 2 charging.
- DC fast charging lacks standardization.
- Interoperability improves with ongoing efforts.
